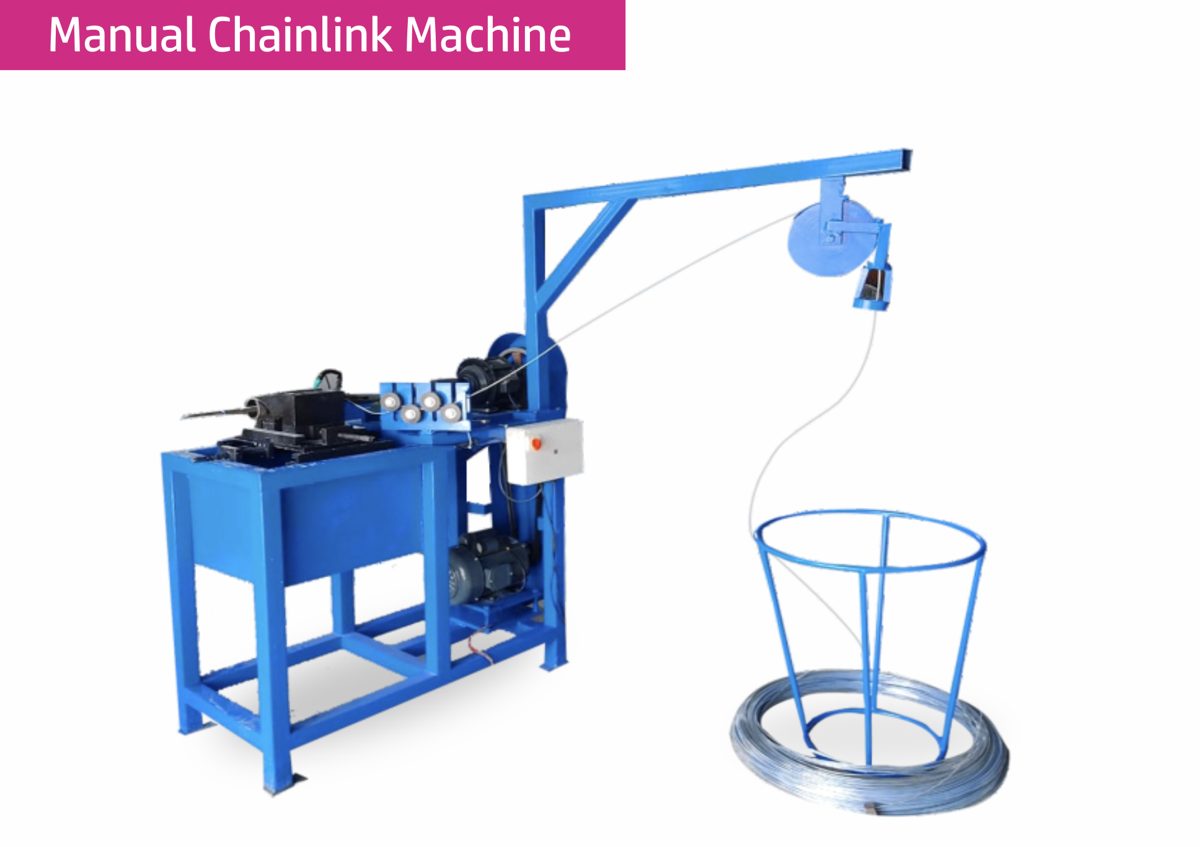

Manual machine for chainlink fencing
A dependable manual machine built with clutch and brake combination for controlled, hand-operated weaving. Comes with one complementary dye of any size.
₹1,20,000 + 18% GST · transport extra
About this product
The lowest-cost way to start making chain link fence. A dependable hand-operated machine with a clutch and brake combination for controlled weaving, run by one operator and at least three weavers.
It makes mesh from 1 to 5 inches in 1.6 to 4 mm GI or PVC coated wire, 2 to 10 ft high, and runs on a 3 HP 3 phase or 2 HP single phase motor, so it can work where 3 phase power is not available. One complementary dye of any size is included.
Used for
- Starting a small fencing business
- Rural units with single phase power
- Contractors making fence on their own sites
Specifications
| Mesh making | 1 inch to 5 inches |
|---|---|
| Wire thickness | 1.6 mm (16 SWG) to 4 mm (8 SWG) |
| Wire type | GI wire, PVC coated wire |
| Chainlink height | 2 feet to 10 feet |
| Production capacity | Depends on labour |
| Operators required | 1 operator, 3 weavers (minimum) |
| Dimensions | 6 ft × 2.5 ft × 3.5 ft |
| Motor | 3 HP induction motor (3 phase) or 2 HP (1 phase) |
| Power required | 440V 3 phase or 230V 1 phase, 4 HP minimum |
| Electrical parts | Omron SMPS, AEC motor, clutch and brake combination, L&T and Schneider |
| Complementary dye | 1 (any size) |
| Delivery time | 10 to 15 working days |
Payment, warranty and installation
- 50% of the purchase order as advance, balance at the time of delivery, for machinery.
- 100% of the purchase order as advance for dye moulds, the hand twisting machine, machinery spares and tools.
- Transport charges extra.
- Labour charge during installation is free. Travel, food and accommodation for our team need to be provided. Free installation does not apply to the manual machine.
- A service charge applies every time our team visits after installation. Travel, food and accommodation need to be provided.
- Two years warranty for machinery. The hand twisting machine has a 6 months warranty. Voltage damage and physical damage are not covered.
Questions buyers ask
Can it run on single phase power?
Yes. It is available with a 2 HP single phase (230V) motor or a 3 HP 3 phase motor.
Is installation included?
Free installation labour does not apply to the manual machine.
How long does delivery take?
10 to 15 working days.
