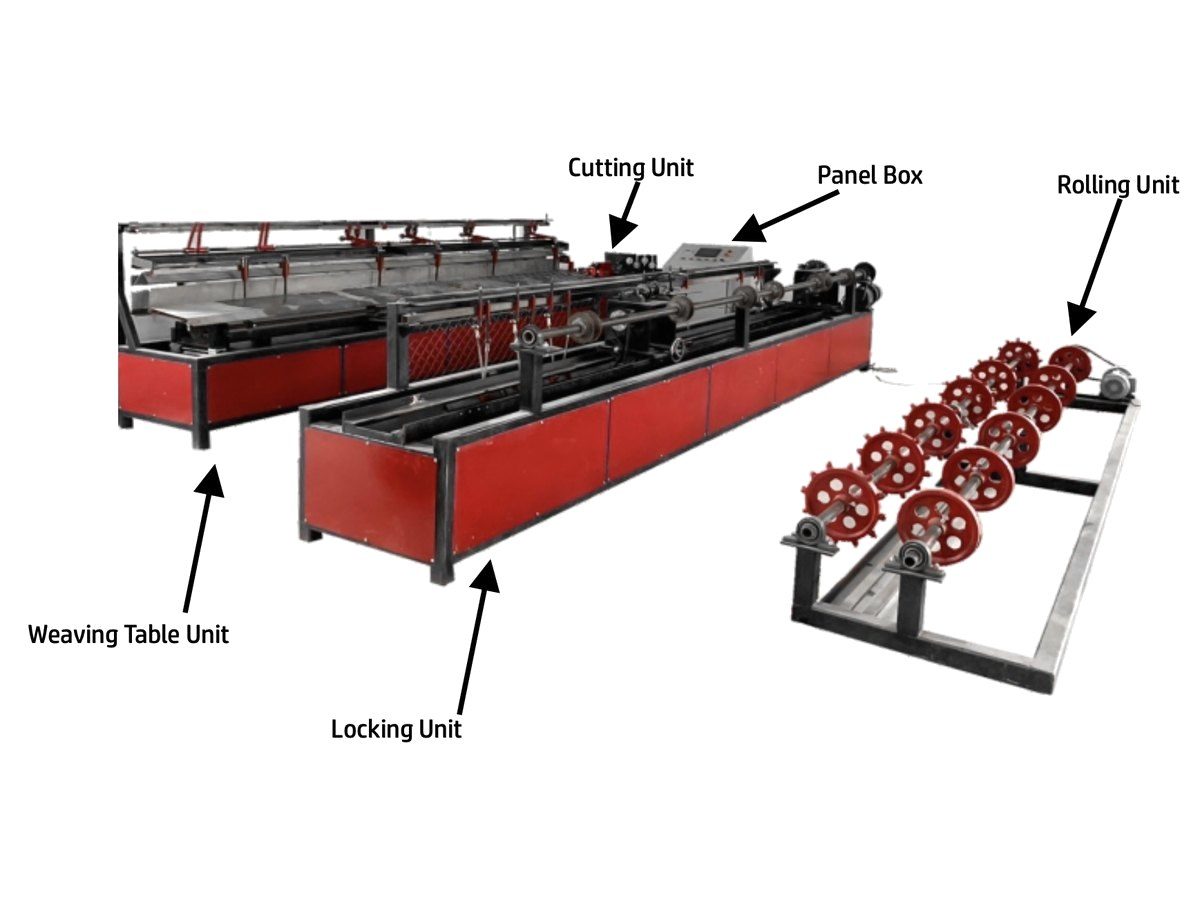

Fully automatic chainlink fencing machine
The top-of-range machine, with a dedicated locking unit and rolling unit alongside cutting and weaving, giving both locking and twisting finish. Comes with four complementary dyes of any size.
₹9,50,000 + 18% GST · transport extra
About this product

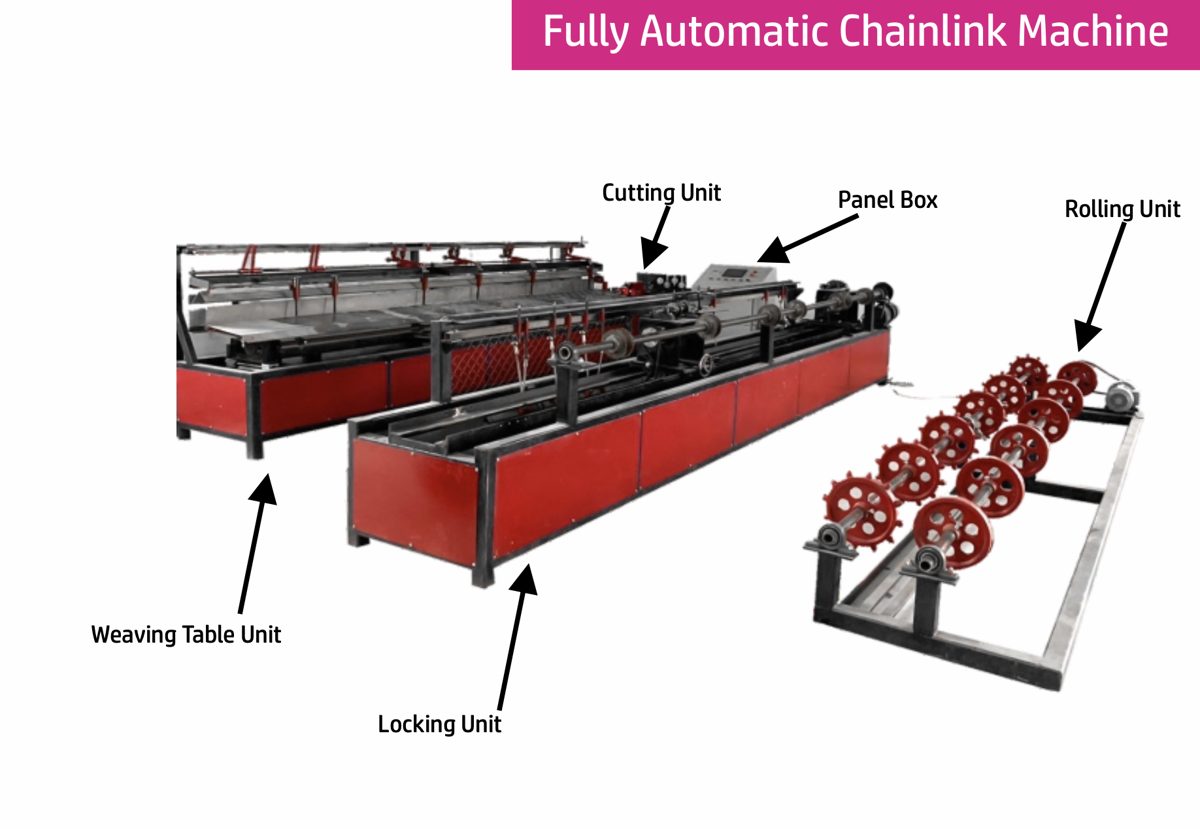

Our top-of-range chain link machine. Alongside the cutting unit and weaving table, it has a dedicated locking unit and rolling unit, so it can give either a locking or twisting edge finish and rolls the finished fence, with just one operator and one helper.
It is controlled by a Delta PLC with a 7 inch Delta touch HMI and a 4 HP servo motor, makes mesh from 1 to 4.5 inches in 1.6 to 4 mm GI or PVC coated wire, 2 to 10 ft high, at 80 to 100 kg per hour. Four complementary dyes of any size are included.
Used for
- High-volume fencing production units
- Manufacturers supplying dealers and contractors
- Businesses that need finished, rolled fence with minimal labour
Specifications
| Mesh making | 1 inch to 4.5 inches |
|---|---|
| Wire thickness | 1.6 mm (16 SWG) to 4 mm (8 SWG) |
| Wire type | GI wire, PVC coated wire |
| Chainlink height | 2 feet to 10 feet |
| Production capacity | 80–100 kg/hr, 60–80 sq.m/hr |
| Finish | Locking or twisting — mesh gap 2" to 4", wire 9 to 13 SWG |
| Operators required | 1 operator, 1 helper |
| Dimensions | 5×2.5×2.5 ft cutting, 10×3×4 ft table, 12.5×2.5×2 ft locking, 12.5×2.5×1 ft rolling |
| Motor | 4 HP servo, 1 HP induction, 1 HP brake, 5× 0.5 HP induction motors |
| Power required | 440V 3 phase, 10 HP minimum |
| Electrical parts | 7" Delta touch HMI, Delta PLC, AEC motors and gear boxes, L&T and Schneider |
| Complementary dye | 4 (any size) |
| Delivery time | 25 to 30 working days |
Payment, warranty and installation
- 50% of the purchase order as advance, balance at the time of delivery, for machinery.
- 100% of the purchase order as advance for dye moulds, the hand twisting machine, machinery spares and tools.
- Transport charges extra.
- Labour charge during installation is free. Travel, food and accommodation for our team need to be provided. Free installation does not apply to the manual machine.
- A service charge applies every time our team visits after installation. Travel, food and accommodation need to be provided.
- Two years warranty for machinery. The hand twisting machine has a 6 months warranty. Voltage damage and physical damage are not covered.
Questions buyers ask
What power supply does it need?
440V 3 phase, 10 HP minimum.
How many people are needed to run it?
One operator and one helper.
How long does delivery take?
25 to 30 working days.
Related products
-

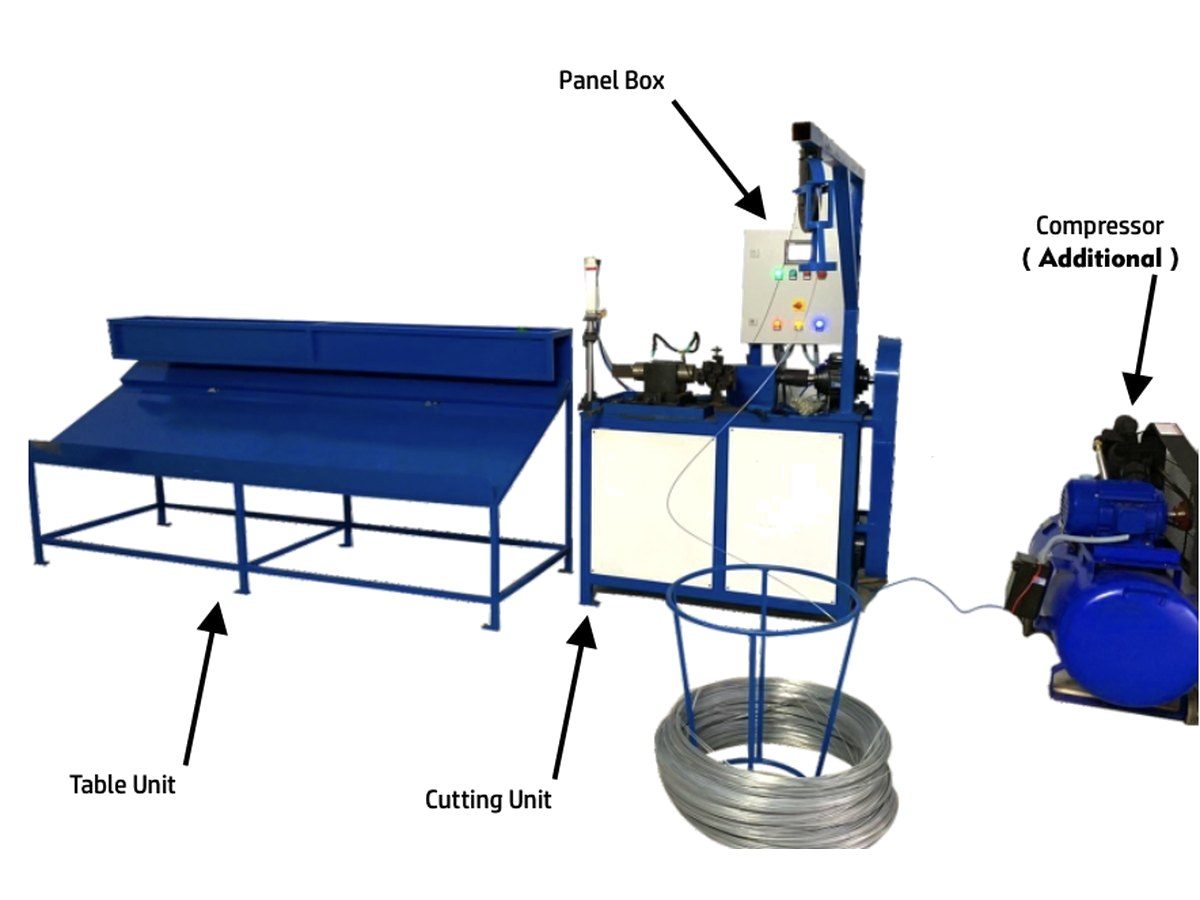

Semi automatic chainlink fencing machine
Our most popular machine for growing workshops: Delta PLC and HMI control with clutch and brake combination, and genuine Janatics pneumatic components. A compressor can be added for an extra cost. Comes with one complementary dye of any size.
₹2,80,000 + 18% GST
Specifications -

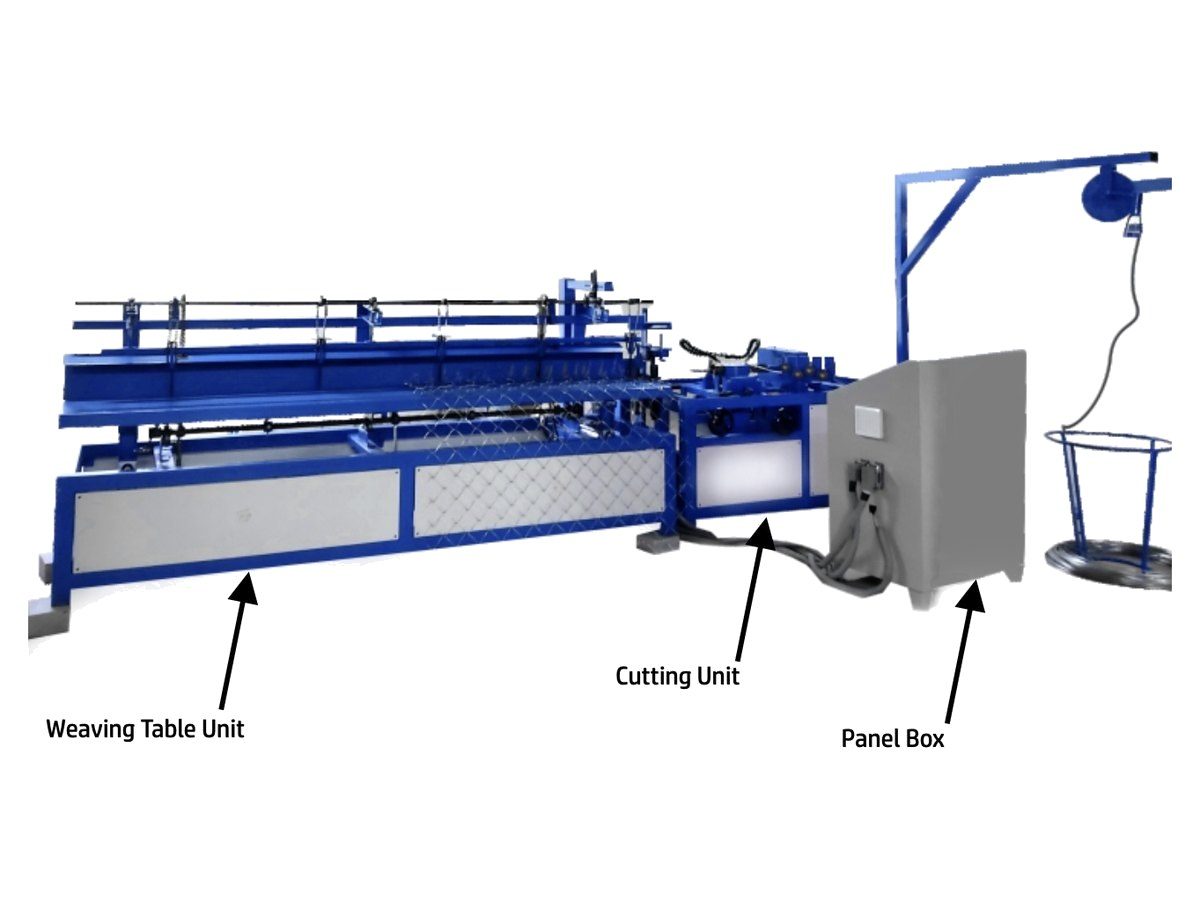

Automatic cutting and weaving chainlink machine
Combines a separate cutting unit and weaving table unit with servo-driven weaving and Delta PLC control for consistent, faster production. Comes with four complementary dyes of any size.
₹6,50,000 + 18% GST
Specifications -

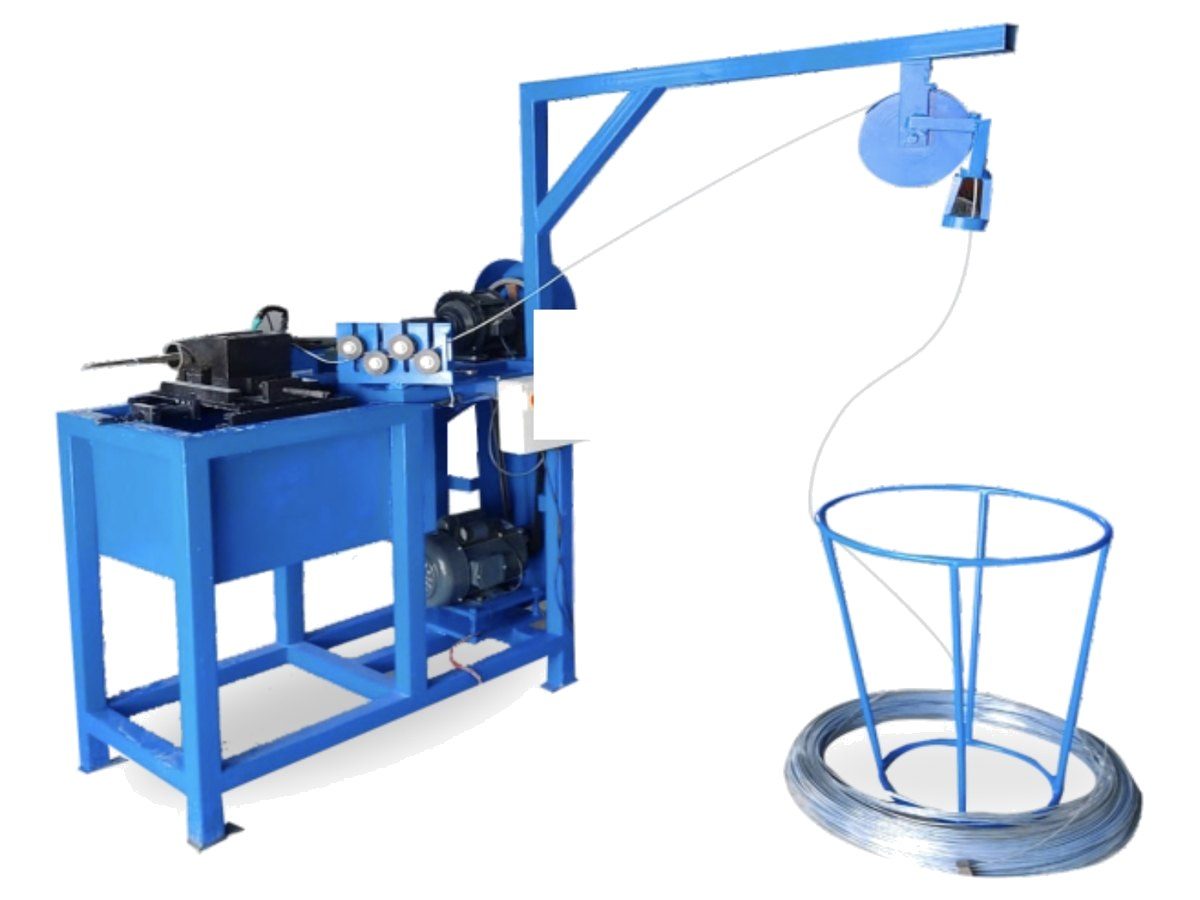

Manual machine for chainlink fencing
